Precor EFX 546i Commercial Series Elliptical Fitness Crosstrainer Review

The Precor EFX 546i Commercial Series Elliptical Fitness Crosstrainer is one out of many series of Precor Elliptical Crosstrainers. This model could be considered as affordable when compared to other series such as the Precor EFX 835 Commercial Series; however, the latter has more features and supports a higher weight capacity of 412 pounds/186.8 kg.

That said, the Precor EFX 546i Commercial Series Elliptical Fitness Crosstrainer features useful functions that could allow the user to exercise with less stress, burn more calories while enjoying every step of the training.

It is self-powered and doesn’t need an external power source or electricity to function. Has a commercial grade build and supports up to 350 pounds/158.7 kg maximum user weight capacity. You can work out vigorously without experiencing any sort of movement or wobbling because it has a good base framework and its overall weight of 318 pounds/144 kg further boosts its overall stability.

The drive is located at the rear and it’s quiet and smooth during operation. Its unique incline called the CrossRamp technology allows the user to alter the path of the EFX 546i between 15 to 40 degrees in both forward and reverse stride motion.

There are 20 different resistance levels that provide a variety of workout intensities that are suitable for beginners to well-advanced athlete users. Furthermore, the EFX 546i biomechanics are validated by the Western Washington University Biomechanics Lab. In other words, the machine is great for users of all fitness levels and sizes.

The dynamic console includes an LED display, program buttons, CrossRamp buttons, resistance buttons, QuickStart button, and more. The handlebars are fixed with HR sensors for transmitting pulse data to the monitor and the console is also telemetry enabled.

Click right here to have a peek at the discounted price of the Precor EFX 546i Commercial Series Elliptical Fitness Crosstrainer on Amazon

The Frame and Construction

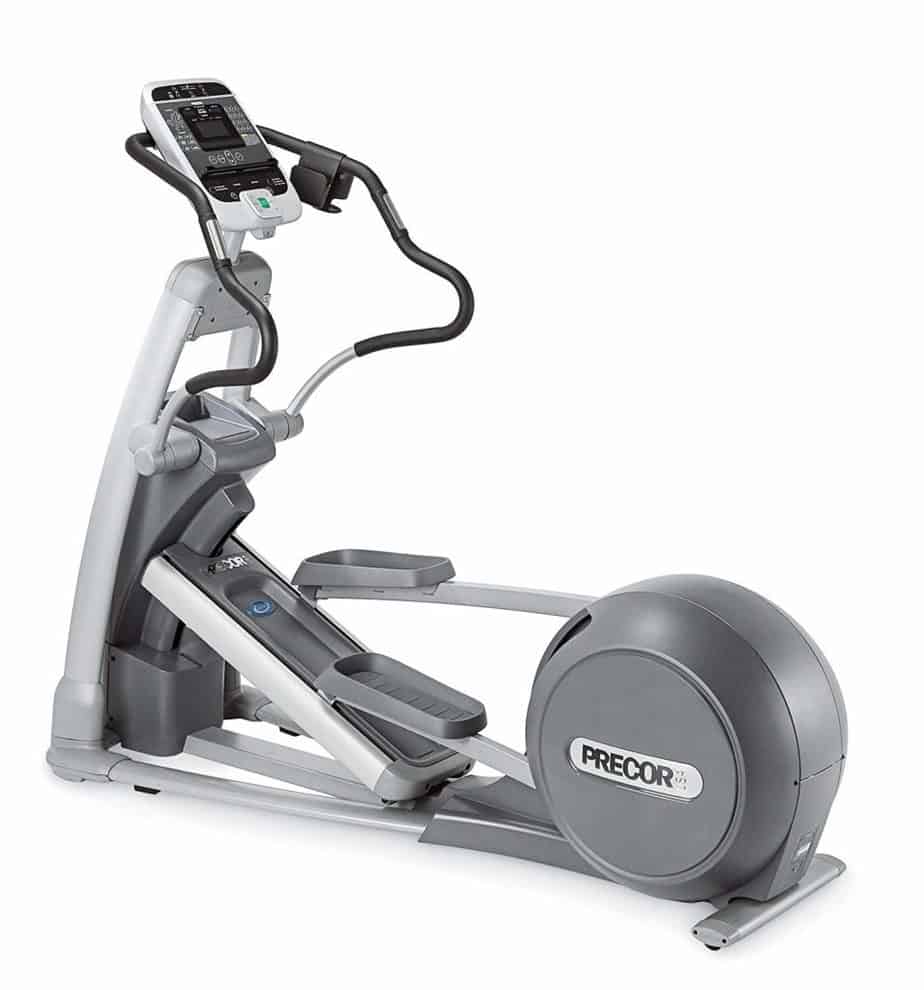

Precor EFX 546i Commercial Series Elliptical Fitness Crosstrainer

The construction of the Precor EFX 546i Commercial Series Elliptical Fitness Crosstrainer comprises of two main elements, steel, and ABS plastic material. The frame is made of heavy-duty steel while the cosmetic and protective covers for the drive system, the joints, the ramp, and the front frame are made of ABS material. The plastic material is so strong and durable that it won’t pop off when stepped on.

The frame is coated with anti-corrosive and scratch paint that protects it from degradation that could be caused by a negative environment.

As aforementioned, the elliptical trainer supports 350 pounds/158.7 kg maximum user weight capacity. It weighs 318 pounds/144 kg which advantageously grounds the machine so that not even an intense workout could affect it stability.

The EFX 546i is obviously a large machine that requires a bit of space for workouts. The overall assembled dimensions are 80 inches long by 32 inches wide by 68 inches tall. Differently put, a workout area of 6’7 long by 2’7’’ wide should be allocated for it. Again, additional extra clearance of 1’-2’ might be necessary for safety and convenience reasons if the area intended to use it in is confined.

It is self-powered, no need for electricity for it to be functional. However, there is an optional power supply available for those that don’t train longer or those that wish to view the monitor longer than 30 seconds after the workout has ended.

The unit’s quality and features are really good and users will be able to use it for a long time as they use it to achieve their fitness goals.

The Handlebars and the Pedals

The EFX 546i Crosstrainer features a set of fixed handlebars. This means that they are stationary and only provide support to the arms and access to the contact heart rate transmitters because the sensors are embedded in them.

The user will not be able to move the arms in a pull and push fashion when working out and so the arms and the back muscle groups may not be impacted. However, the upper body core is being engaged when exercising.

The handlebars are covered with a soft rubber foam material that provides comfortable and secure grips. They enable the user to workout longer without experiencing slippage or blisters in the palms.

The foot pedals are polypropylene and self-draining.  They are large and have different stride lengths of 21.2’’ to 24.7’’ depending on the incline level. They are designed with safety measures, such as the anti-skid bottom and the border that further prevents the foot from slipping off during exercise activity.

The pedals sit on the gliding system that consists of double polyurethane wheels with an over-sized axle, and sealed bearings with improved seals that glide on the precision extruded-aluminum tracks which evenly distribute the user’s weight for efficiency. Thus, the user experiences an incredibly smooth feel while exercising on the crosstrainer.

The Drive

Precor EFX 546i Commercial Series Elliptical drive and pedals

The Precor EFX 546i Commercial Series Elliptical Fitness Crosstrainer has a rear belt drive system that is exceptionally smooth and silent during operation.

Its near silent operation allows the user to workout unrestrained, no worries about disturbing the family or the neighbors. The user will be able to remain focused on the workout activity without being distracted by any noise from the machine.

The machine’s quiet operation also allows the user to engage in entertainment activity while exercising, such as listening to good music, watching favorite TV show or movie.

The drive doesn’t require any major maintenance except for the occasional adjustment of the belt tension when necessary and won’t take more than 2 minutes to accomplish.

The Incline

Just like the other series, the EFX 546i Crosstrainer is integrated with the CrossRamp technology that makes it possible for the incline to be adjusted from 15-40 degrees.

The adjustment is automatic and it impacts the intensity of workouts.

The different angles the Crossramp provides isolate and cross train the quadriceps, glutes, hamstrings, and the calves.

It is easy to transit from one incline level to another without having to interrupt workout procession because it is being controlled via the buttons on the console. It is also possible for the machine to automatically assign an incline level when a preset program is being used.

The Resistance

The EFX 546i Commercial Series Crosstrainer features durable 6-phase resistance system that has no contacting parts, thus friction and wear are reduced significantly.

The resistance system provides 20 levels that range from 18 watts (level 1 at 20 SPM) to 720 watts (level 20 at 100 SPM).

The resistance levels provide challenging workouts that are suitable for all users and they will be able to lose weight, tone muscle groups, and improve cardio health and endurance strength.

Resistance could be adjusted manually via the buttons on the console or automatically assigned when a preset program is selected.

The Console

The Precor EFX 546i Commercial Series Elliptical Fitness Crosstrainer features a telemetry compatible console that allows the user to wirelessly connect a compatible HR chest strap transmitter in order to observe the pulse rate and maintain the target zone during workouts.

The large console also has several other interesting features such as the high readable LED display that tracks workout progress, the numerical keypad, tactile dome keys, QuickStart button, tap control, console languages, unit selection, muscle monitor, preset programs, etc.

The console provides the user with the resources to be able to keep track of workout progress, stay focused and motivated toward achieving fitness objectives.

Accessory

There are two accessories present on the Precor EFX 546i Crosstrainer and they are the water bottle holder and a phone holder.

The water bottle holder allows you to keep water handy in order to stay hydrated throughout the entire workout session, while the phone holder simply allows you to keep your smartphone within reach for taking calls or listening to music as you workout.

Pros/Features Overview

  • Durable and good quality
  • Very stable
  • Supports 350 pounds/158.7 kg maximum user weight capacity
  • It is portable with transport wheels
  • The biomechanics  make it possible for the machine to engage the lower body muscle groups like no other cardio equipment could
  • It is self-powered, no power supply is needed
  • Belt drive system provides smooth and near-silent operation
  • Patented CrossRamp technology provides incline from 15-40 degrees
  • 20 resistance levels provide a variety of workout intensity suitable for all users
  • The LED display readability is great
  • Comprehensive workout feedback
  • The console features a lot of functions relevant for achieving fitness goals quickly
  • Telemetry enabled and contact sensors available
  • Good warranty
  • Low maintenance
  • Supports workout session of up to 4 hours
  • 10 preset programs include 3 cross training, 1 fitness test, 1 manual, and more

Cons

  • HR chest strap not included
  • No mobile handlebars
  • No cooling fan or sound system
  • It’s large and space consuming

Warranty

Home-Use Warranty

  • Lifetime on Frame
  • 10 Years on Parts & Wear
  • 1 Year on Labor

Commercial Warranty

  • 7 Years on Frame
  • 5 Years on Display Face Assembly
  • 2 Years on Pars
  • 1 Year on Labor

Product Dimensions and Specifications

  • Length 80’’
  • Width 32’’
  • Height 68’’
  • Supports 350 pounds/158.7 kg maximum user weight capacity
  • Weight: 318 pounds/144 kg
  • Power: Self
  • Programs: 10 preset programs (3 cross training, 1 fitness test, 2 gluteals, 1 heart rate, 1 interval, 1 manual, 1 weight loss)
  • Incline: Patented CrossRamp technology, 15-40 degrees
  • Handlebars: Stationary
  • Maximum workout time: 240 minutes
  • Stride length: 21.2’’ at 13 degrees to 24.7’’ at 40 degrees
  • Drive: Rear belt drive system
  • Resistance: 6-phase generator system, 20 levels
  • Display: LED monitor, 24 electronic readouts (percent complete, average heart rate, average speed, calories, calories per hour, calories per minute, CrossRamp incline, goal, distance, heart rate, language(English, Dutch, German, Spanish, French, Portuguese, Italian, Romanized Russian) , maximum heart rate, METS, profile, resistance levels, segment time, SmartRate, speed, strides per minute, target heart rate, time, time elapsed, time in hear rate zone, time remaining, total strides, units, watts, workout summary)
  • Step-up height (pedals at the lowest level): 8’’
  • Step-up height (pedals at the highest level): 22’’
  • Contact HR sensors: Yes
  • Telemetry enabled; Yes

Shipping, Assembly, and Maintenance

Shipping

The Precor EFX 546i Commercial Series Elliptical Fitness Crosstrainer is shipped in a box that weighs about 405 pounds/183.7 kg.

The shipping cost depends on the retailer whom you are purchasing from. Nevertheless, some retailers such as Amazon provides free shipping and delivers within days order was placed.

Assembly

It is advised that you seek for professional assembly assistance by contacting Precor through email: askprecor@precor.com or call 1-866-593-5568.

Maintenance

The Precor EFX 546i Commercial Series Elliptical Fitness Crosstrainer may require a periodic adjustment of the belt tension.

Every other maintenance detail is included in the owner’s manual.

However, no serious maintenance is needed.

Conclusion

The Precor EFX 546i Commercial Series Elliptical Fitness Crosstrainer is a good cardio machine that is suitable for everyone. Fitness enthusiasts will be excited to have this equipment added to their home gym.
